How Much Crushed Concrete Do I Need for Retaining Wall Backfill

Building a retaining wall requires careful planning, especially when it comes to choosing the right backfill material. Crushed concrete has become increasingly popular for retaining wall projects because it offers excellent drainage, costs less than natural stone, and provides the structural support your wall needs to last.

For a typical retaining wall, you’ll need approximately 1.85 tons of crushed concrete for every 100 square feet of wall area at a 4-inch depth. However, the exact amount depends on your wall’s height, length, thickness, and the specific backfill requirements of your project.

Quick Tip: Always order 10-15% extra crushed concrete to account for compaction and settling during installation.

In this guide, you’ll discover how to calculate the precise amount of crushed concrete for your retaining wall backfill, understand why it’s an excellent choice for your project, and learn practical tips to ensure your installation goes smoothly.

Why crushed concrete works perfectly for retaining wall backfill

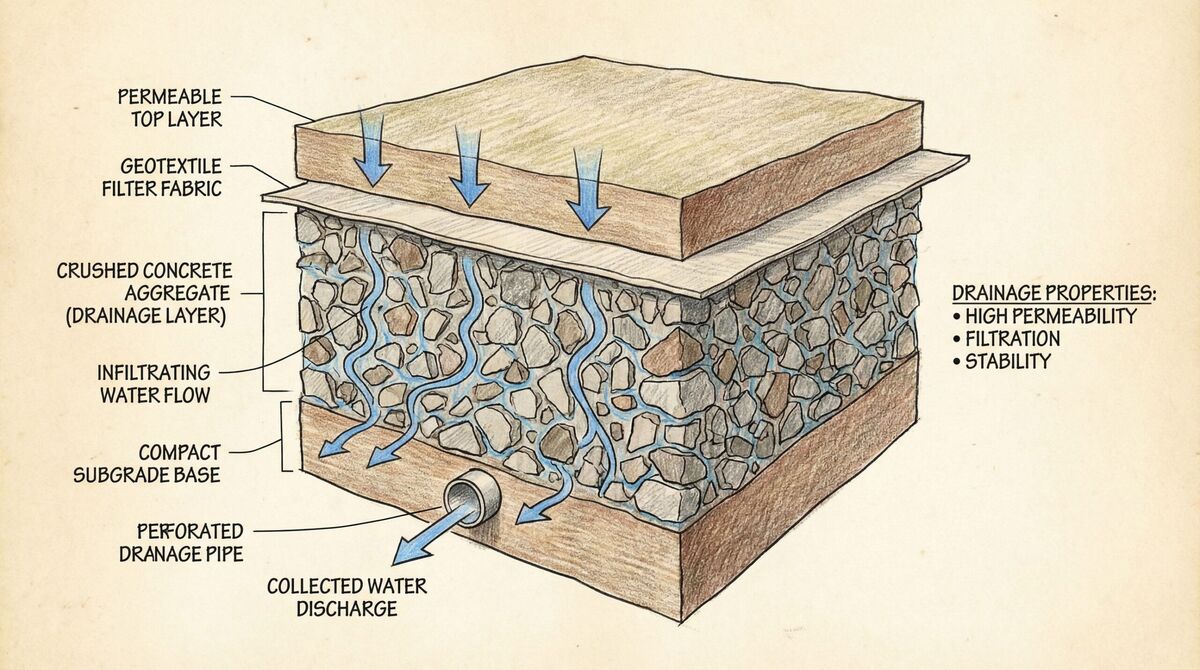

Crushed concrete stands out as an ideal backfill material for several compelling reasons. Unlike traditional soil backfill, crushed concrete provides superior drainage capabilities that prevent water buildup behind your wall. This drainage feature is crucial because hydrostatic pressure from trapped water is one of the leading causes of retaining wall failure.

The material’s angular shape allows it to lock together when compacted, creating a stable base that won’t shift over time. Since crushed concrete is made from recycled materials, it typically costs 30-50% less than natural stone alternatives while delivering comparable performance.

Environmental benefits make crushed concrete even more attractive. By choosing recycled concrete, you’re helping reduce landfill waste and decreasing the demand for newly quarried materials. This eco-friendly approach doesn’t compromise quality, as crushed concrete maintains excellent load-bearing capacity and weather resistance.

The versatility of crushed concrete allows you to use it for both the foundation base for retaining walls and backfill material, simplifying your material ordering and reducing overall project costs.

Calculating your crushed concrete requirements step by step

Getting the right amount of crushed concrete requires a straightforward calculation that considers your wall’s dimensions and backfill area. Start by measuring your retaining wall’s length, height, and the planned thickness of your backfill area.

The basic formula is: Length × Height × Thickness ÷ 27 = Cubic yards needed. Since crushed concrete weighs approximately 1.4 tons per cubic yard, multiply your cubic yard result by 1.4 to get the tonnage.

Remember to add 10-15% extra material to your final calculation. This buffer accounts for compaction during installation and ensures you won’t run short during your project. For the examples above, you’d order an additional 1.3 tons, 3.7 tons, and 1.6 tons respectively.

Important Note: These calculations assume standard backfill requirements. Consult with a structural engineer for walls over 4 feet high or in areas with poor soil conditions.

If you need help determining your total material needs, our crushed concrete calculator can simplify the process and ensure accuracy.

Smart purchasing and installation strategies

Finding quality crushed concrete requires connecting with the right suppliers in your area. Local concrete recycling centers often offer the best prices, while established aggregate suppliers provide consistent quality and reliable delivery schedules.

When evaluating suppliers, ask about the source of their crushed concrete and whether it meets local building codes. Quality crushed concrete should be free of rebar, wood, and other contaminants that could compromise your wall’s stability.

Installation success depends on proper preparation and compaction techniques for crushed concrete. Excavate your foundation area to the required depth, typically 6-8 inches below ground level for the base course. Install your crushed concrete in 6-inch lifts, compacting each layer thoroughly with a plate compactor or hand tamper.

Ensure proper drainage by incorporating weep holes or a drainage pipe system behind your wall. This prevents water accumulation and maintains the structural integrity of your retaining wall over time.

Common mistakes that can compromise your project

Measurement errors represent the most frequent problem in retaining wall projects. Failing to account for the backfill area’s full depth or forgetting to include extra material for compaction can leave you short of materials mid-project.

Inadequate compaction during installation creates settlement issues that can cause your wall to shift or lean over time. Each layer of crushed concrete must be compacted to 95% density before adding the next layer. Understanding the crushed concrete compaction factor is essential for achieving proper density and long-term stability.

Pro Tip: Rent a plate compactor for projects over 100 square feet. Hand tamping works for smaller areas but becomes inefficient and less effective on larger installations.

Another common mistake involves ignoring drainage requirements. Even with crushed concrete’s excellent drainage properties, you still need proper outlet systems to direct water away from your wall. Install drainage pipes or weep holes every 6-8 feet along your wall’s base to prevent water accumulation.

Poor material quality can also undermine your project. Avoid crushed concrete fines that contain excessive dust and small particles or contaminated materials. These issues can reduce drainage effectiveness and create weak spots in your backfill.

Crushed concrete offers an excellent solution for retaining wall backfill when you calculate quantities correctly and follow proper installation techniques. By understanding your project’s specific requirements and avoiding common pitfalls, you’ll create a durable retaining wall that provides years of reliable service while staying within your budget.
